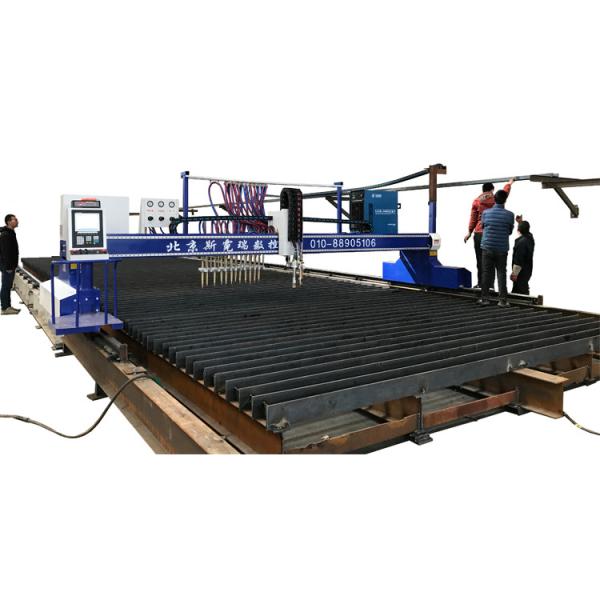

CNC Metal Sheet Gas Oxfuel Cutting Machine With Multi StripTorches
for Steel
1. Main Frame: All frames adopt steel plate, making sure high
mechanical strength and deformation resistance to guarantee the
cutting precision.
2. Front Beam adopt steel plate and processed by large cnc milling
machine at one time which increase flatness and smoothness of
surface to ensure the cuting precision.
3. The gear rack groove and guid rail groove on the front beam are
processed by cnc milling machine at one time, which make sure
plasma and frame torches move stable and cut accuracy.
4. Hollow Design: The beam adopts hollow design to avoid frame
deformation caused by heat .
Technical Parameters
| Name | CNC sheet metal strip plasma flame cutting machine |
| Gantry beam structure | box-welded structure, with annealing treatment, not deformed |
| Input power | 220V,50/60Hz |
| Cutting range | 3000x6000mm, can be customized |
| Plasma cutting thickness | 2-40mm, depends on plasma source |
| Flame cutting thickness | 6-120mm |
| Control system | F2300B CNC controller 10.4 inch |
| THC | auto torch height control for plasma |
| Lifter and torch quantity | one for plasma, one for flame used for profile cutting |
| Gas torch quantity for straight strip cutting | 10 pcs, can be addes as per client's required |
| Drive motor | servo motor, dual drive |
| Guide rail | 24kg steel rail |
| Nest software | FastCAM OR HiNest |
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional
manuafacturer and exporter of CNC cutting machine. we have been in
this CNC filed for more than 14 years. Our main products includes
portable CNC,gantry CNC, CNC plasma table for metal sheet and steel
pipes.
Since the estabilsh of our company, we have been sticking to the
path of specialization and had many engineering technology staff
members.
Our machines are widely used in automotive manufacturing,
shipbuilding, fan manufacturing,mining equipment, steel processing,
advertising cutting, enginerring machiney, agricultural machinery
and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK,
Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia,
India and so on.
Our advantage
Our certificate
Shipping
FAQ.
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14
years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can
directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in
advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i
should choose?
A: Very easy to choose. Just tell us what you want to do by using
CNC cutting machine, the cutting size and thickness, and then let
us give you perfect solutions and suggestions. Feel free to contact
us!
