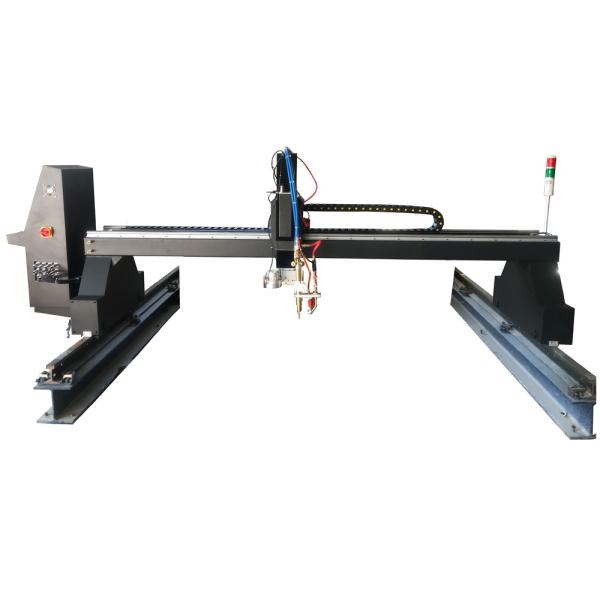

2000x6000mm Servo Motor Cnc Plasma Cutting Machine Light Gantry CNC
Plasma Cutter
1. Gantry cnc plasma cutter adopts metal sheet structure, light
weight, good inertia, low center of gravity.
2. Machine can cut any flat shape parts composed of straight lines
and arcs.
3. The graphic is static and dynamic, easy to learn, can be
programmed directly on the machine, or can be drawn on a computer
or attached by using a ready-made CAD file. The gifted software is
directly converted into a G code program file, and is automatically
cut by copying it to the operating system through a USB flash
drive.
4. Advantage: double-sided drive structure, exquisite system
structure ,high degree of automation, simple operation, convenient
maintenance, easy cutting from sheet metal to large thickness steel
plate.
5. Application: machine can cut carbon steel, stainless steel,
alloy steel, aluminum and other non-ferrous metal sheets.
Product Parameters
| Name | metal CNC cutting machine plasma |
| Application | cutting metal sheet like mild steel, stainless steel, aluminum,etc. |
| Input power | 220V, 50/60Hz |
| Effective cutting width | 2000mm, 3000mm, can be customzied |
| Effective cutting length | 6000mm, 8000mm, can be customized |
| Drive motor | Servo motor |
| Drive mode | Dual drive |
| Reducer | ZD high precison planetary reducer |
| CNC controller | 10.4 inch starfire SF-2300S or Fangling F2300B |
| THC | HYD XPTHC-400-PT auto torch height control for plasma |
| Lifter | 1 pc with two torch holders, plasma with anti-collison device |
| Guide rail | 24kg steel rail |
| Cutting speed | 0-8000mm/min |
| Max speed | 0-10000mm/min |
| Nest software | FastCAM/StarCAM/HiNest |
| Plasma source | CHINA HUAYUAN or MISNCO or American brand |
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional
manuafacturer and exporter of CNC cutting machine. we have been in
this CNC filed for more than 14 years. Our main products includes
portable CNC,gantry CNC, CNC plasma table for metal sheet and steel
pipes.
Since the estabilsh of our company, we have been sticking to the
path of specialization and had many engineering technology staff
members.
Our machines are widely used in automotive manufacturing,
shipbuilding, fan manufacturing,mining equipment, steel processing,
advertising cutting, enginerring machiney, agricultural machinery
and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK,
Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia,
India and so on.
Our advantage
Our certificate
Shipping & Packing
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14
years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can
directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in
advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i
should choose?
A: Very easy to choose. Just tell us what you want to do by using
CNC cutting machine, the cutting size and thickness, and then let
us give you perfect solutions and suggestions. Feel free to contact
us!
